The 75 series range of alloy master cylinders from Tilton are designed for brake and clutch use where space is limited. The short body still allows for a full 1.1 inch stroke to provide enough fluid displacement for most applications.
The cylinder is flange mounted and the mounting hole spacing is 2.25 inch. The pushrod has a thread of 5/16 UNF and protrudes 4.3 inches from the mounting flange.

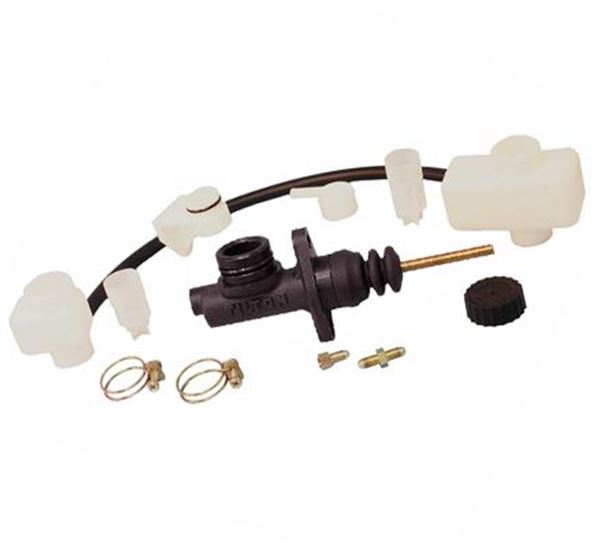

The master is supplied as a kit with 2 sizes of fluid reservoir and a remote mount kit which gives the flexibility of having the reservoir attached directly to the cylinder or mounted remotely.
The outlet port is situated on the end of the cylinder and has a 3/8 UNF female thread. A 3/8 UNF male to male adaptor is also supplied.
The 75 series master cylinders are available with a wide range of bore sizes to suit most applications.
