OMP One CESAL 4 Extinguisher System

VERY COMPACT AND ULTRALIGHT EXTINGUISHING SYSTEM

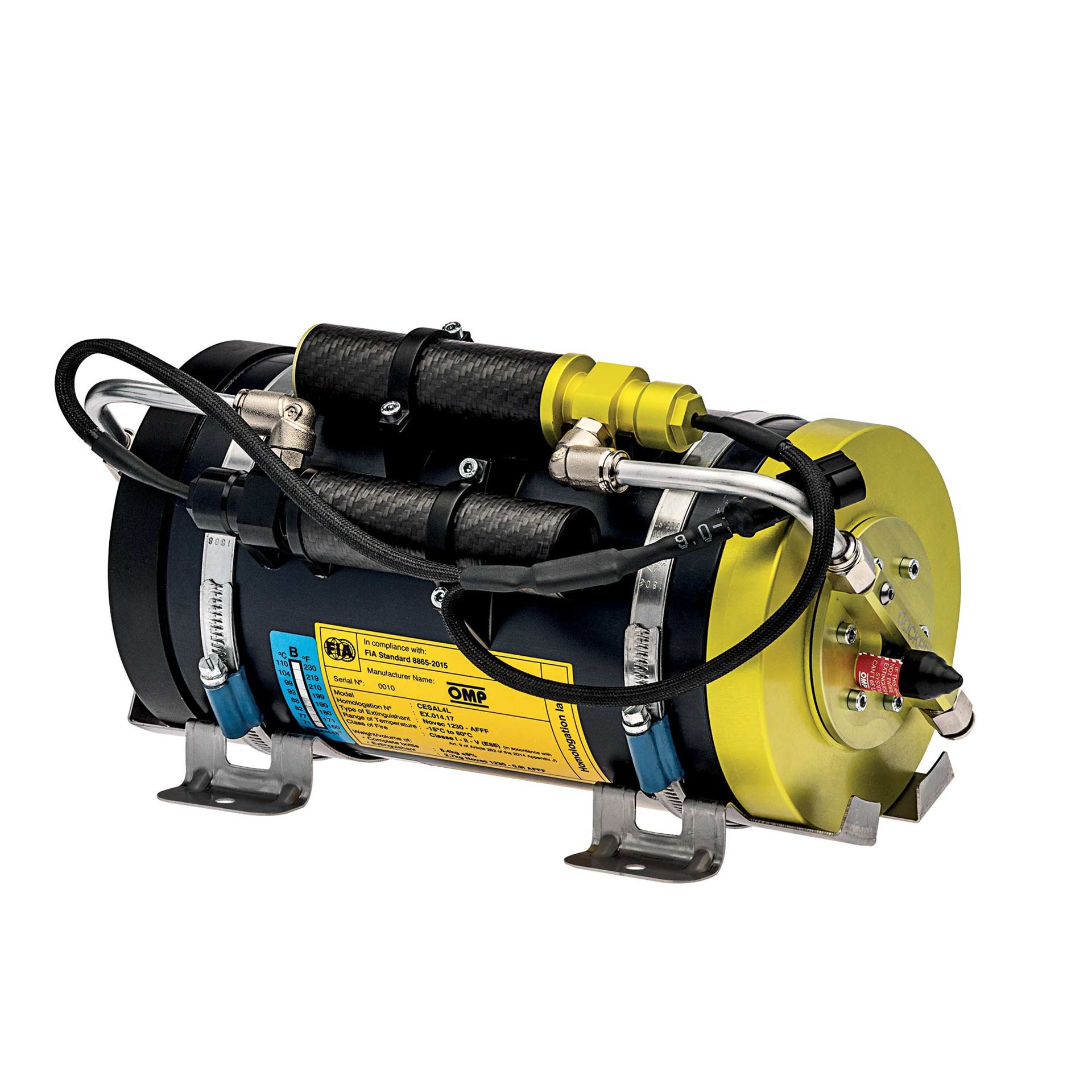

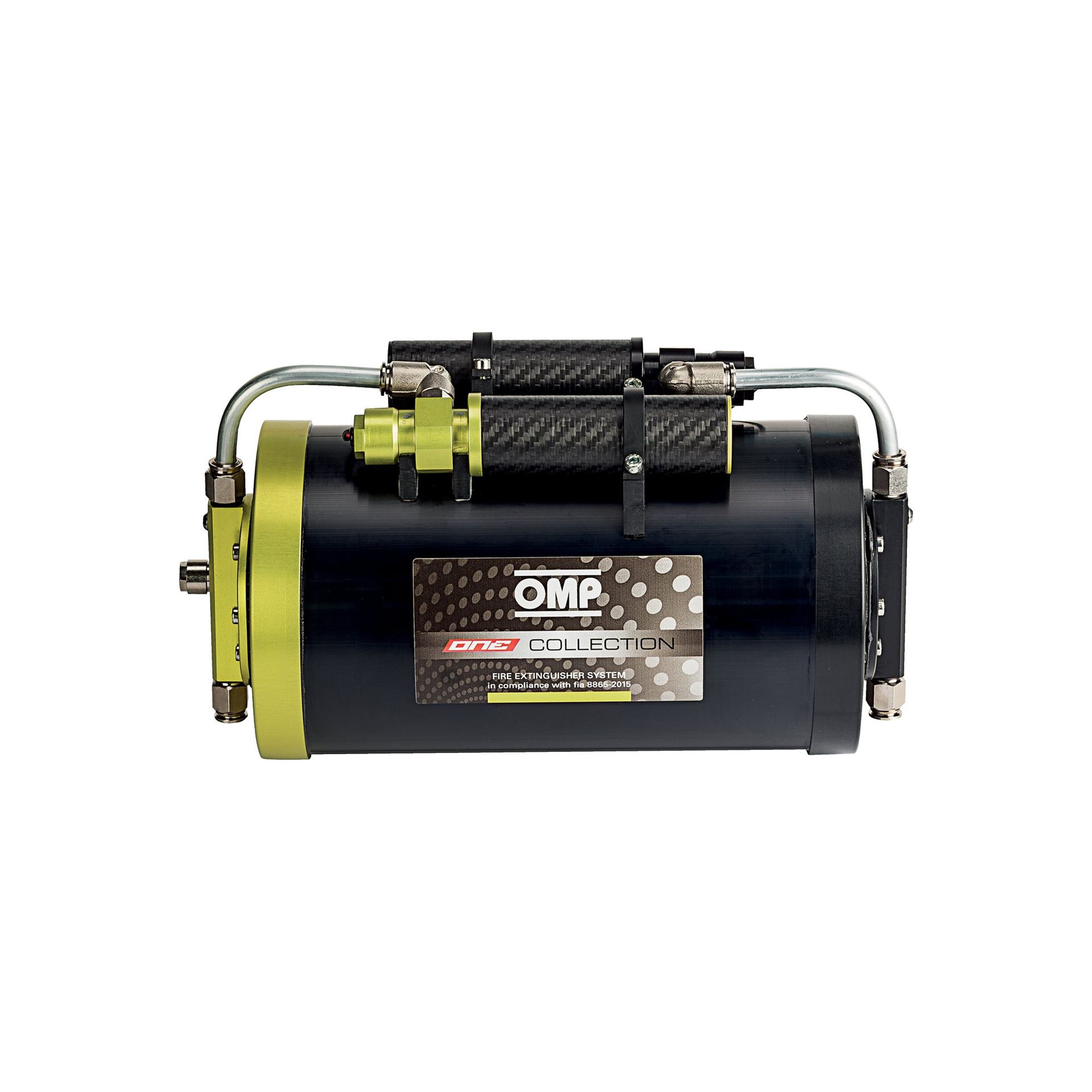

It’s a very compact and ultralight fire extinguisher system, electrically activated, suitable for saloon cars. The system is homologated FIA 8865-2015 . One single bottle made in anodized aluminum. The extinguisher can extinguish a fire in few seconds, injecting 2 different fire-extinguishing mediums. AFFF (Black side) to protect the engine bay and the clean agent NOVEC1230 (Green side) to protect the cockpit.

The system gets pressurized when activated enabling the discharge of the extinguishant. 3 black nozzles are for the engine bay in order to protect the most critical and dangerous parts depending on the type of vehicle, 2 green nozzles are for the cockpit to ensure the driver front and rear protection.

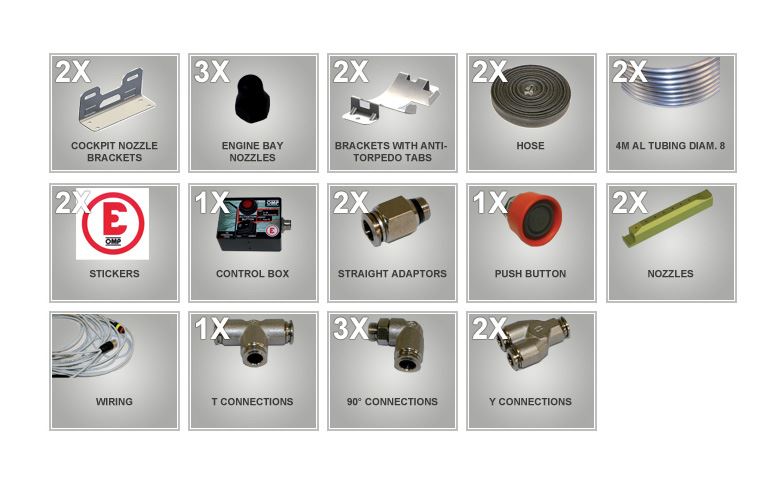

Fixing brackets, clamps, tubing and connections are included.

Homologation: FIA 8865-2015 complying with latest updates (June 2017)

TOTAL WEIGHT: 5,5 Kg

DIAMETER: 130 mm

LENGTH: 274 mm (CESAL4S), 287mm (CESAL4L)

HOMOLOGATED FOR USE ON:
petrol
petrol + up to 30% ethanol or methanol
petrol + up to 85% ethanol or methanol E85

VERSION "L" (CESAL4L): suitable for medium-large sized cockpit (from 2.2 m3 to 4.1 m3)

VERSION "S" (CESAL4S): suitable for small sized cockpit (from 1.2 m3 to 2.2 m3)
