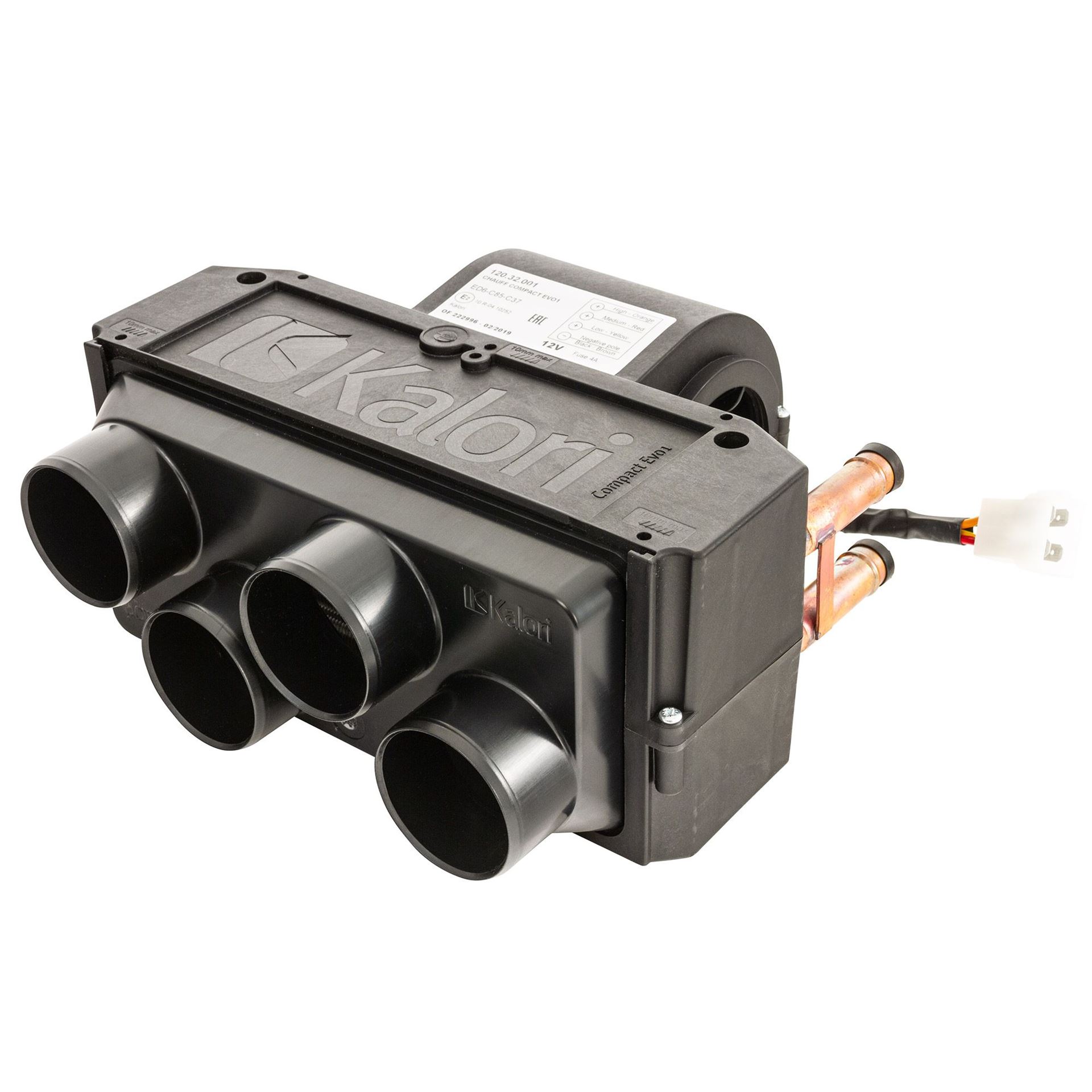

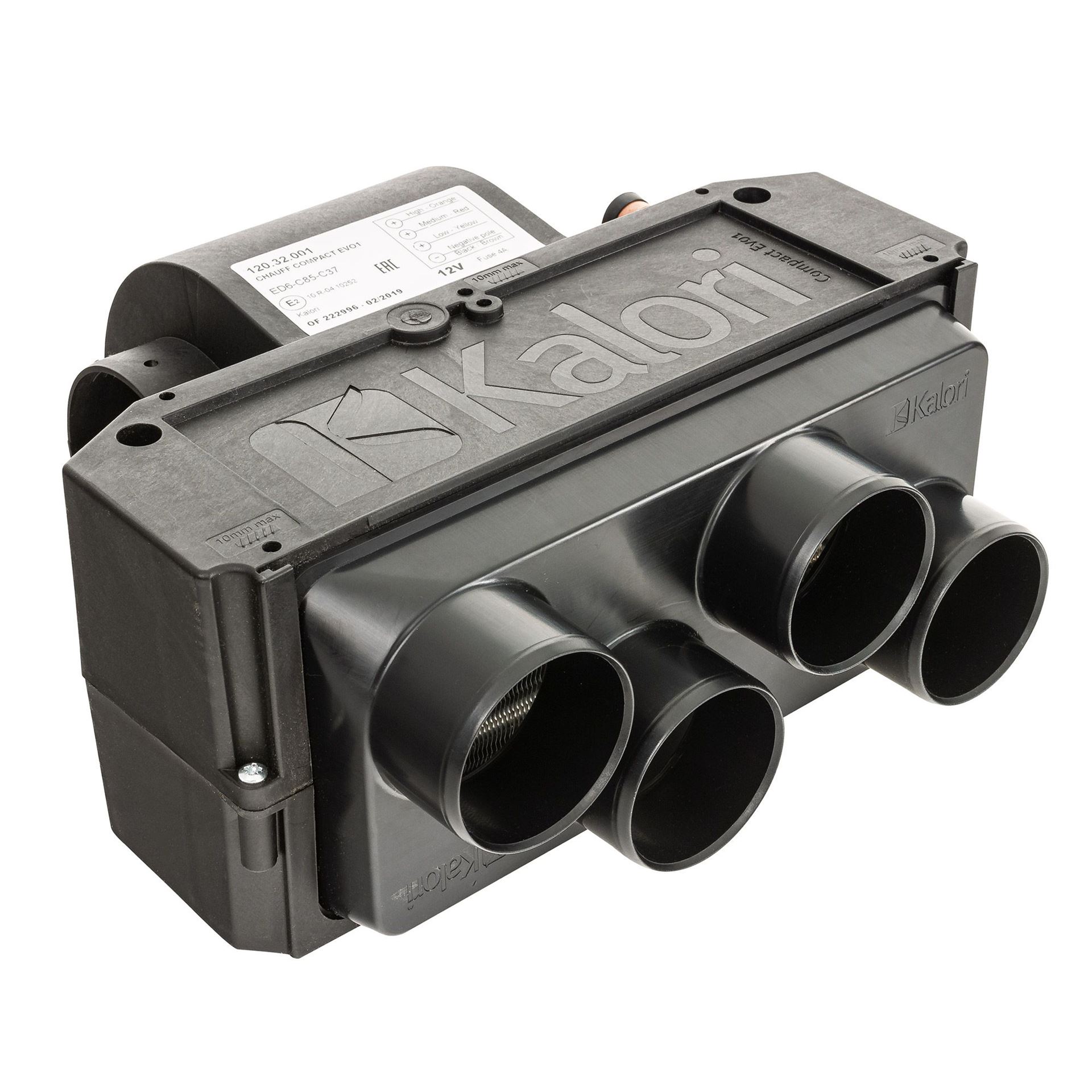

Compact EVO1 Heater 4 x 55mm Outlet
A powerful and efficient compact interior heater for automotive applications, perfect for use in self build cars, off-roaders, race and rally cars. The heater uses a powerful single wheel centrifugal blower with a built-in resistor pack offering 3 fan speeds, the blower casing allows fresh air to be ducted into one of the intakes for the fan.
This heater uses a single centrifugal fan, the fan has a high, medium and low speed settings. You will need to use a 4 position fan speed switch to operate the fan, sold separately.
4.3kw Compact EVO1 Heater 1x ∅100mm 12v
| Specification |
Metric |
Imperial & Other |
| Heat Output |
4.3 kw |
14,670 BTU |
| Airflow |
230 m3/hr |
135 cfm |
| Weight |
2.2 kg |
4.84 lbs |
| Hose Size |
∅ 16mm |
∅ 5/8" |
| Air Nozzle Size |
4x ∅ 55mm |
4x ∅ 2.17" |
| Noise Level |
63 dB (Max Fan Speed) |
| Voltage |
12v |
| Current Continuous |
5.8a (Max Fan Speed) |
| Power Consumption |
70w |
| Fan Type |
Single Centrifugal Fan |
| Fan Speeds |
3 Speed |
| Heater Core Design |
Copper Tube with Aluminium Fin |
