BG Racing Embossed Aluminium Heat Barrier Shield

Previous productBG Racing Titanium Heat Bar...
Next productNACA Duct - Clear

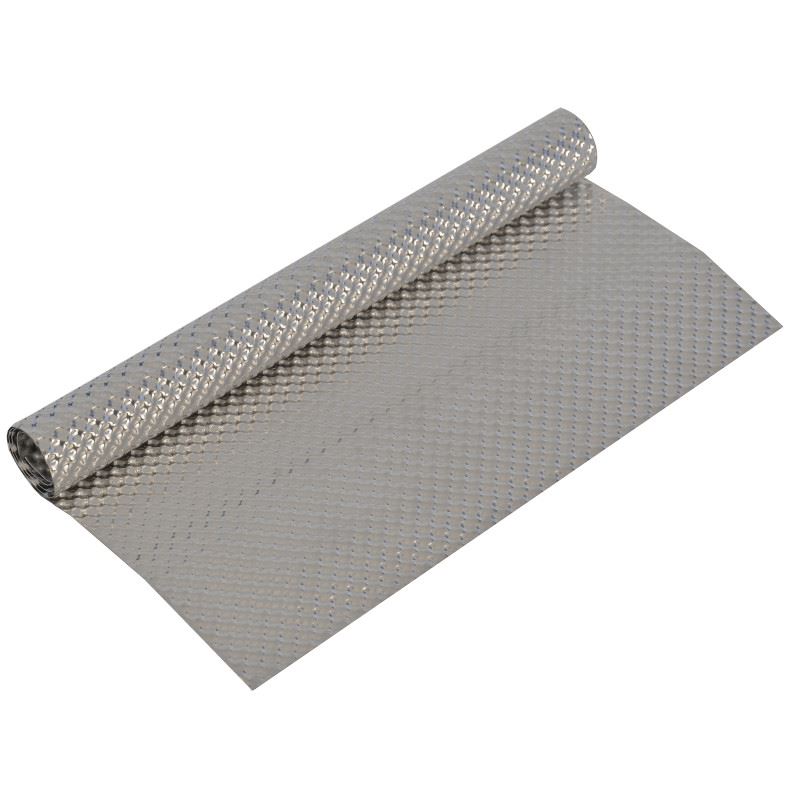

The B-G Embossed Aluminium Heat Shield is an ideal choice of underbody heat management material due to its highly reflective, low emissive, and highly corrosion resistant nature.
AU$69.00
Be the first to review this product
Manufacturer: BG Racing
The B-G Embossed Aluminium Heat Shield is an ideal choice of underbody heat management material due to its highly reflective, low emissive, and highly corrosion resistant nature.

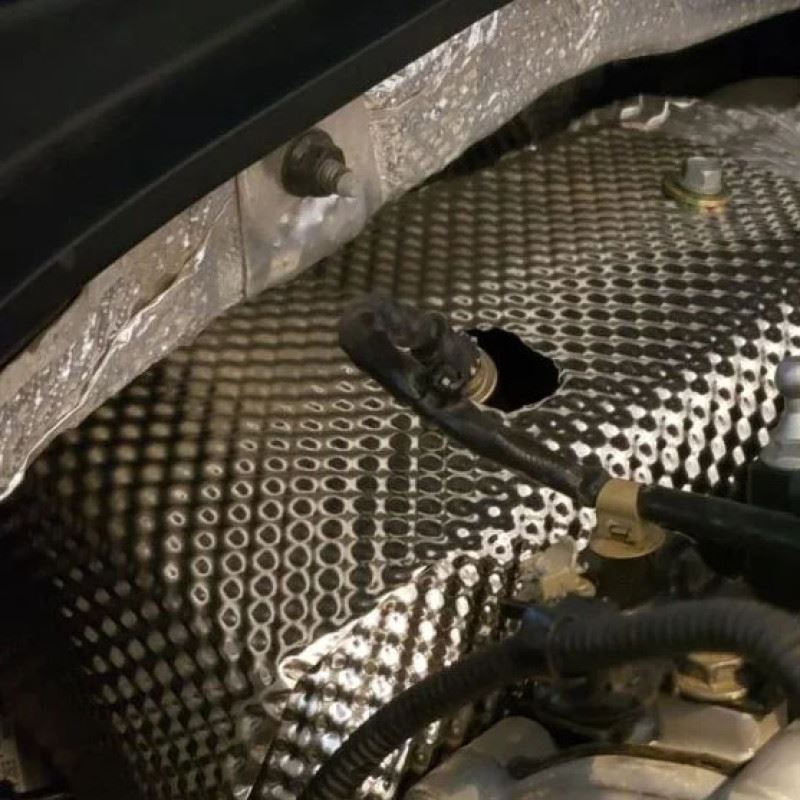

The aluminium sheet is easy to trim, fold and form and keeps its shape thanks to the embossed surface providing rigidity in all directions, despite its 0.2mm overall thickness, and it is perfect for a range of applications including engine bays, gearbox tunnels, firewalls, bulkheads and more.

The heat barrier shield is effective against radiant heat of up to 1090°C (2000°F) and direct contact of up to 590°C (1100°F), and it is available in sheet sizes of 500mm x 500mm (19.5” x 19.5”) or 1000mm x 1000mm (39.3" x 39.3").

Dimensions may vary due to manufacturing tolerances.


Specification



Part Number: BG5312: 500mm x 500mm (19.5” x 19.5”) / BG5313: 1M x 1M (39.3” x 39.3”)
Thickness: 0.2mm – 0.007”
Material: Aluminium
Colour: Silver
Finish: Embossed
Width: BG5312: 500mm – 19.5” / BG5313: 1000mm – 39.3”
Length: BG5312: 500mm – 19.5” / BG5313: 1000mm – 39.3”
Operating Temperature Range: Radiant: 1090°C (2000°F) / Direct Contact: 590°C (1100°F)
Nett Weight: BG5312: 140g – 0.31lb / BG5313: 700g – 1.54lb

The B-G Embossed Aluminium Heat Shield is an ideal choice of underbody heat management material due to its highly reflective, low emissive, and highly corrosion resistant nature.

The aluminium sheet is easy to trim, fold and form and keeps its shape thanks to the embossed surface providing rigidity in all directions, despite its 0.2mm overall thickness, and it is perfect for a range of applications including engine bays, gearbox tunnels, firewalls, bulkheads and more.

The heat barrier shield is effective against radiant heat of up to 1090°C (2000°F) and direct contact of up to 590°C (1100°F), and it is available in sheet sizes of 500mm x 500mm (19.5” x 19.5”) or 1000mm x 1000mm (39.3" x 39.3").

Dimensions may vary due to manufacturing tolerances.


Specification



Part Number: BG5312: 500mm x 500mm (19.5” x 19.5”) / BG5313: 1M x 1M (39.3” x 39.3”)
Thickness: 0.2mm – 0.007”
Material: Aluminium
Colour: Silver
Finish: Embossed
Width: BG5312: 500mm – 19.5” / BG5313: 1000mm – 39.3”
Length: BG5312: 500mm – 19.5” / BG5313: 1000mm – 39.3”
Operating Temperature Range: Radiant: 1090°C (2000°F) / Direct Contact: 590°C (1100°F)
Nett Weight: BG5312: 140g – 0.31lb / BG5313: 700g – 1.54lb
