An accurate scale system incorporating all the features required for a team or driver to carry out a professional chassis set up.
$4,279.00
AU$3,499.00
Manufacturer: BG Racing

The Clubman Race Scales connect to the control pad using heavy-duty flexible cables with tough locking connectors.

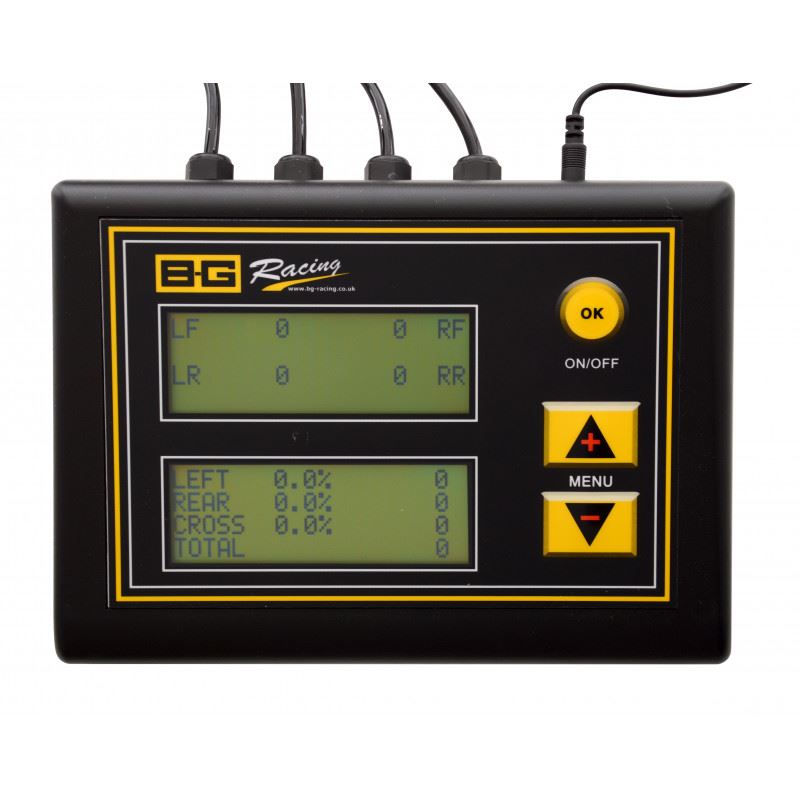

The easy to use control pad displays the vehicle’s four corner weights, the cross weights and percentages all at once and also has the ability to calculate vehicles centre of gravity. It has the option to change the displays and configurations of the readings between KG or LBS. The control pad also features a low power consumption level with a rechargeable battery life of 40 hours.

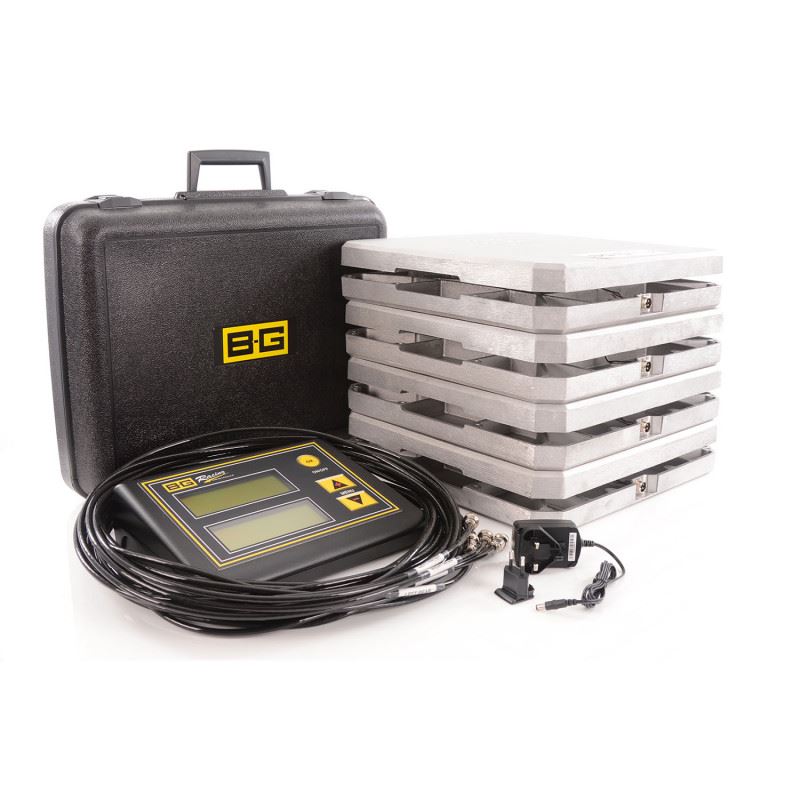

A protective carry case is included to protect and transport the control pad, cables and mains power adaptor.



Specification


  • Part Number: BGR325
  • Material: Aluminium
  • Battery Life: 40 hours

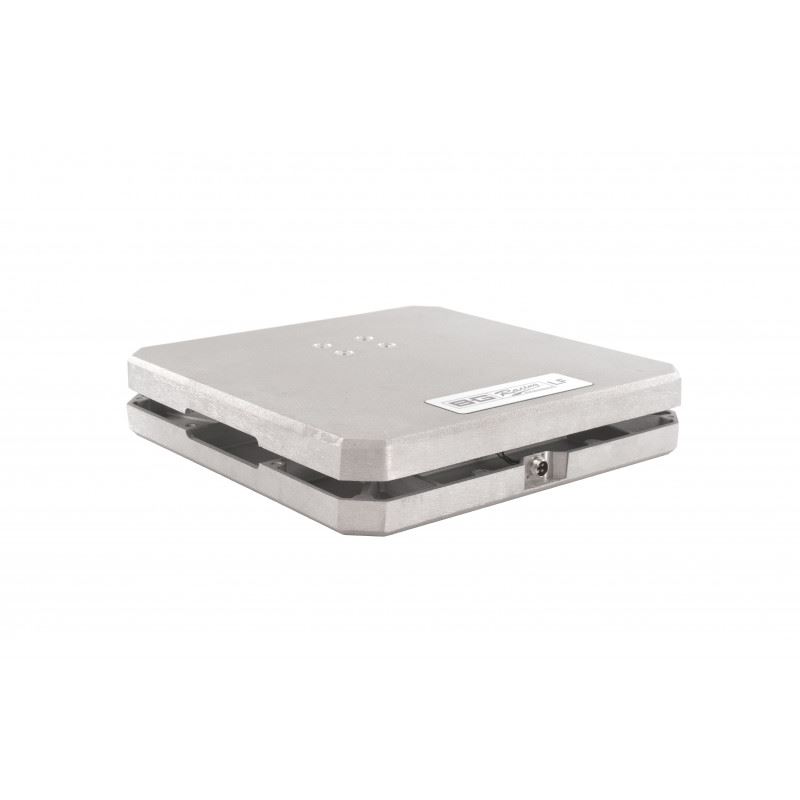

  • Scale Pad Length: (L) 381mm - 15.00”
  • Scale Pad Width: (W) 381mm - 15.00”
  • Scale Pad Height: (H) 76.20mm - 3.00”
  • Scale Pad Weight: 9.80kg - 21.61lb
  • Scale Pad Loading Capacity: 680kg - 1496lb per scale pad
  • Scale Pad Power Supply: Powered by the control pad and cables
  • Control Pad Power Supply: 220/240v - 12v Adaptor and rechargeable battery
  • Control Pad Width: 210mm - 8.26”
  • Control Pad Height: 76mm - 2.99”
  • Control Pad Weight: 1.2kg / 2.6lb
  • Cable Length: 5.3m - 208.66”
  • Control Pad Length: 280mm - 11.02”

The Clubman Race Scales connect to the control pad using heavy-duty flexible cables with tough locking connectors.



The easy to use control pad displays the vehicle’s four corner weights, the cross weights and percentages all at once and also has the ability to calculate vehicles centre of gravity. It has the option to change the displays and configurations of the readings between KG or LBS. The control pad also features a low power consumption level with a rechargeable battery life of 40 hours.

A protective carry case is included to protect and transport the control pad, cables and mains power adaptor.



Specification


  • Part Number: BGR325
  • Material: Aluminium
  • Battery Life: 40 hours
  • Scale Pad Length: (L) 381mm - 15.00”
  • Scale Pad Width: (W) 381mm - 15.00”
  • Scale Pad Height: (H) 76.20mm - 3.00”
  • Scale Pad Weight: 9.80kg - 21.61lb
  • Scale Pad Loading Capacity: 680kg - 1496lb per scale pad
  • Scale Pad Power Supply: Powered by the control pad and cables
  • Control Pad Power Supply: 220/240v - 12v Adaptor and rechargeable battery
  • Control Pad Width: 210mm - 8.26”
  • Control Pad Height: 76mm - 2.99”
  • Control Pad Weight: 1.2kg / 2.6lb
  • Cable Length: 5.3m - 208.66”
  • Control Pad Length: 280mm - 11.02”
