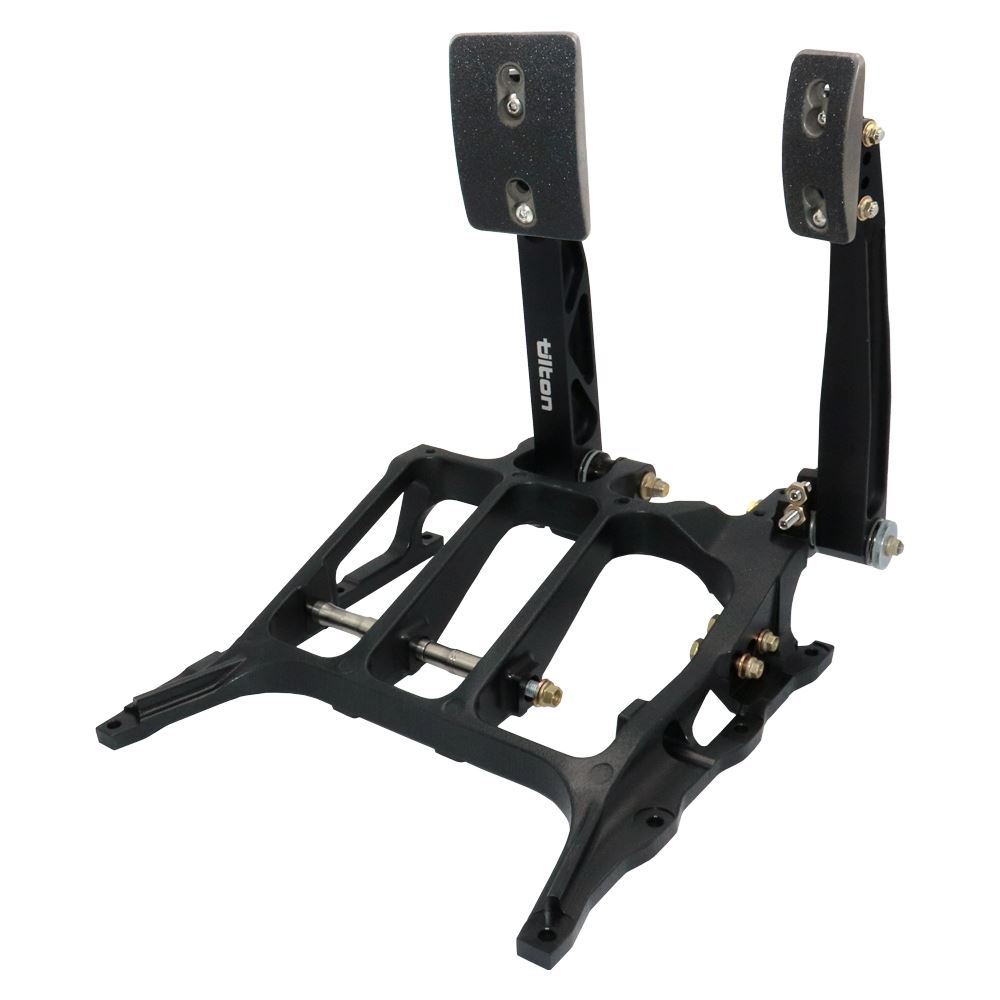

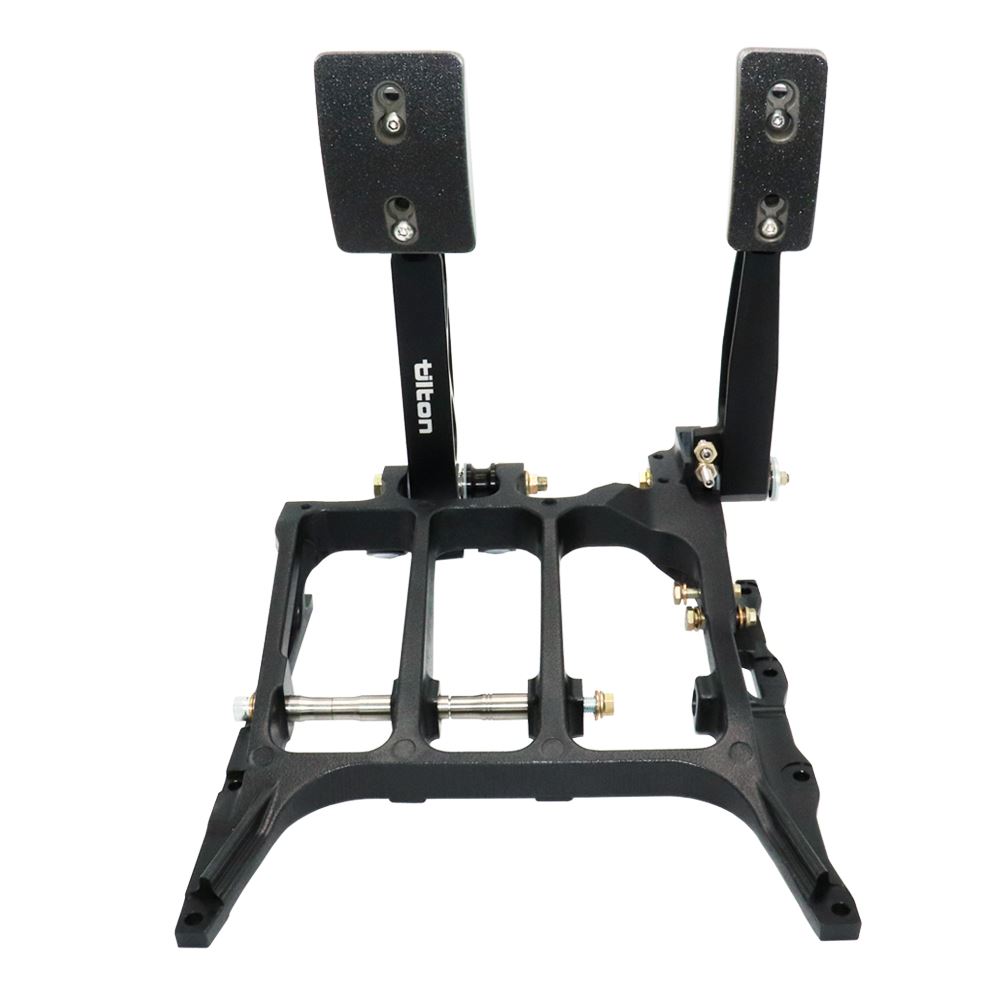

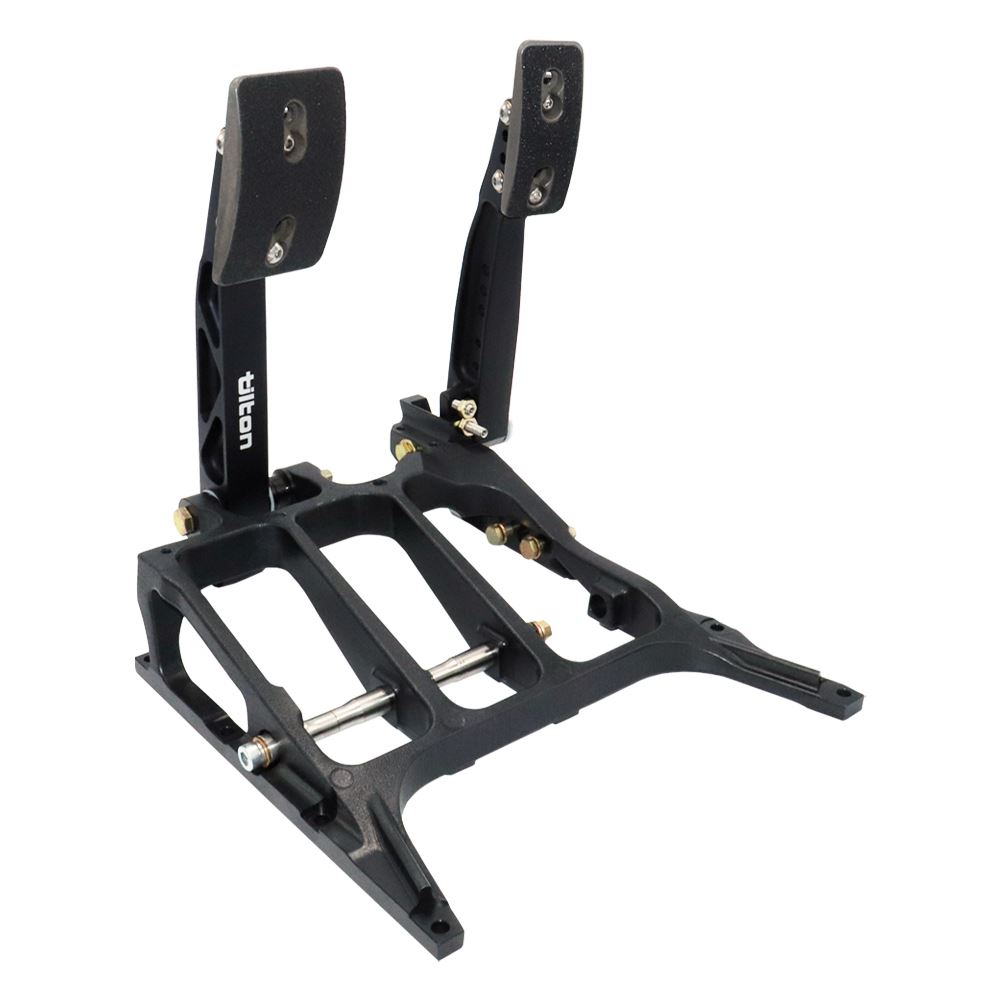

Tilton 850 Series Brake & Throttle Underfoot Pedal Assembly

Tilton 800-Series pedal assemblies have been redesigned to feature an ultra-efficient trunnion type balance bar and billet aluminum brake pedal arm, replacing the original version of 800-Series pedal assemblies that utilized a spherical bearing type balance bar in a forged aluminum pedal.

Features:

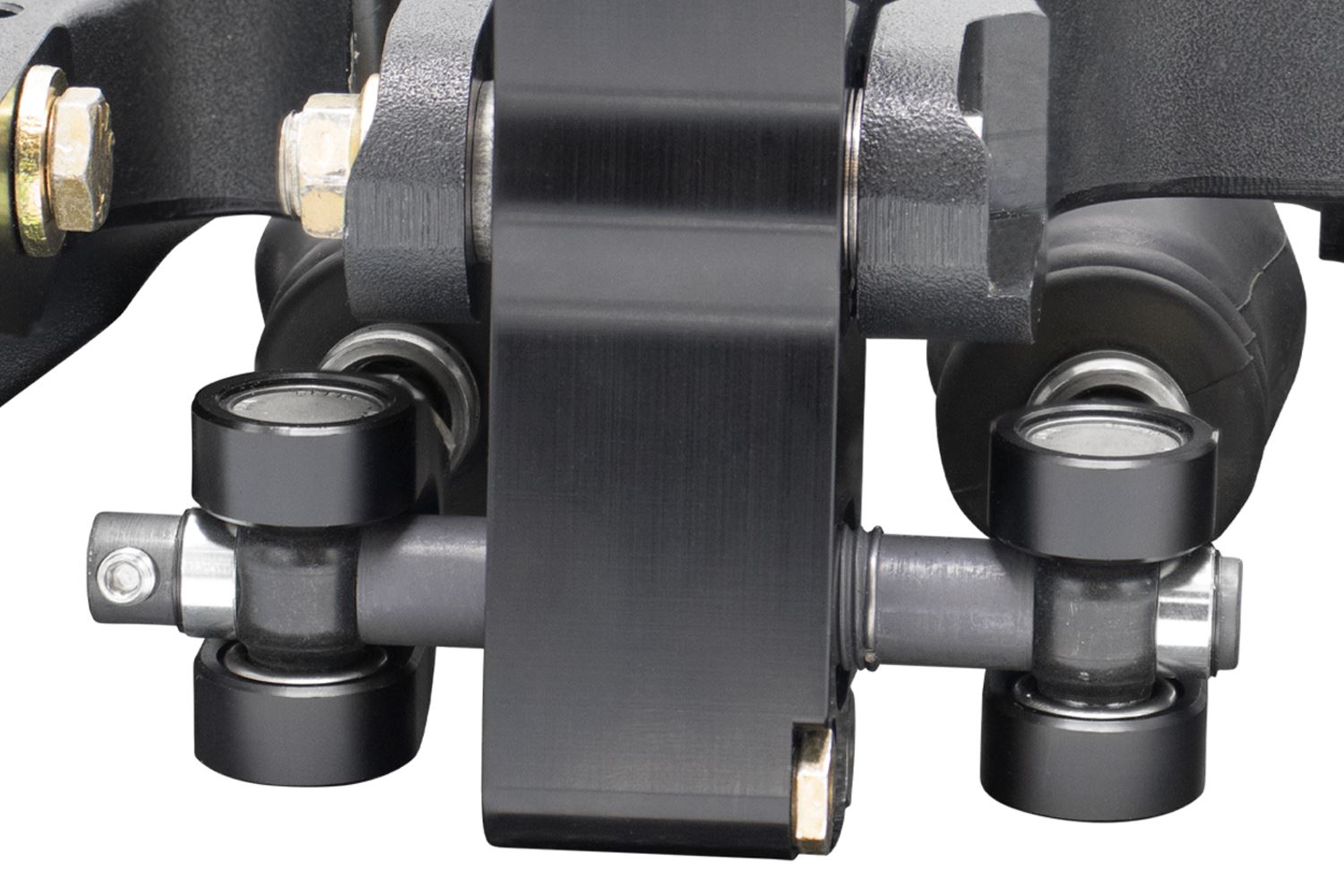

• Ultra-efficient 7/16”-20 trunnion type balance bar virtually eliminates brake migration through braking zone
• Billet aluminum brake pedal with ball bearings in pivot
• Forged aluminum throttle pedal with oil-impregnated bronze bushing in pivot
• Lightweight and high-strength aluminum frame
• Adjustable pedal ratio (4.8:1 to 6.1:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
• Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
• Weighs 6.6 lbs (does not include master cylinders)

Master Cylinders (sold separately):

• Brakes: 78-Series or 79-Series master cylinders

800-Series pedal assemblies are available to order in Firewall-mount, Floor-mount, Overhung and Underfoot configurations. Underfoot configurations are also available with an optional slide system for quick pedal assembly position changes.

Contact the sales team on 08 8332 8811 - sales@autosport.com.au for more information on alternate options.

Warning: A Remote Brake Bias Adjuster must be used with 800/850-Series Pedal Assemblies to prevent the balance bar from rotating on its own.
